English
ATX

Powerful Computing · Boundless Expansion

Accelerate Edge AI Computing Innovation

ATX

HomeProductEmbedded SystemATX
M24-RPLS-ATX03

Decenta ATX03 is a standard ATX form factor motherboard, which is built on Intel? Q670 chipset.  It performs well in industrial control and automation applications that require high-performance computing and scalability, such as Industrial automation, embedded systems, communication equipment, industrial servers and other scenarios.

Main Features
  • Intel? LGA1700 Socket: Ready for Bartlett Lake  & 14th/13th/12th gen Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? processor

  • Support 4x DDR4 3200MT/s U-DIMM, Dual Channel, up to 128GB

  • Support VGA/HDMI?/DP/eDP Quad-display

  • 1x M.2 E-Key 2230 Slot for Wi-Fi module, Support Wi-Fi 6E & Bluetooth 5.3

  • 2x M.2 M-Key 2242/2280 Slots for SSD

  • 2x PCIe 4.0 X16 Slots(Support 1x16 or 2x8 mode), 2x PCIe 4.0 X4 Slots(X4 Signal), 1x PCIe 3.0 X4 Slot(X4 Signal), 2x PCI Slots

  • Support TPM 2.0,  Watchdog

M24-RPLS-ATX03

3

2

M24-RPLS-ATX03

3

2

  • Product Specifications

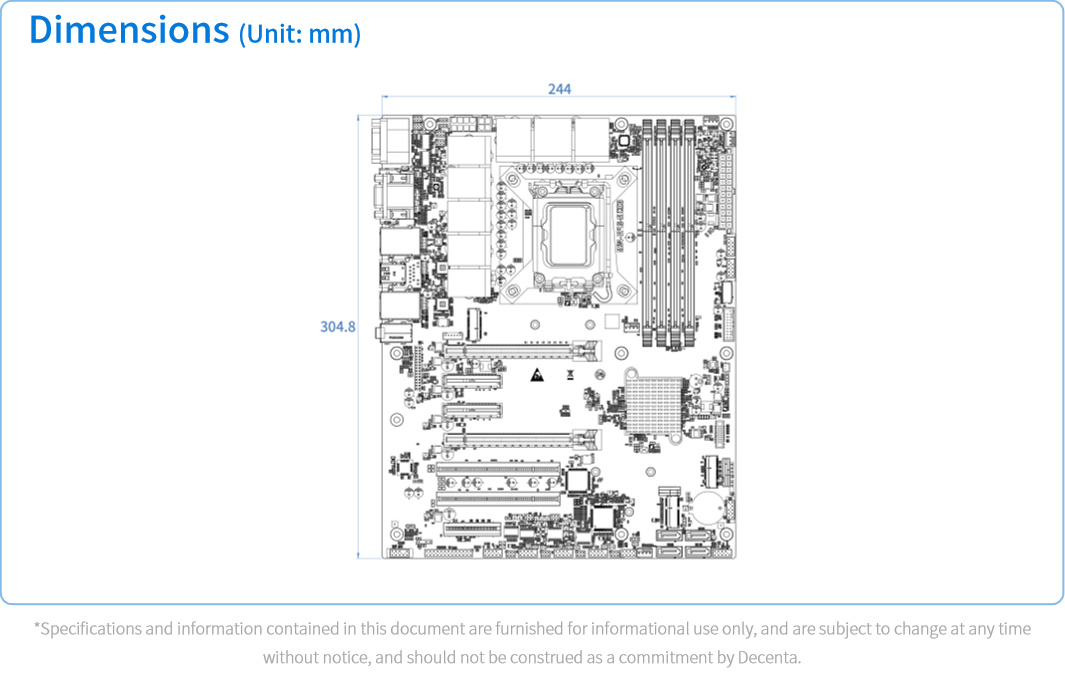

  • Product Dimension Drawing



Document
Download

Fill in and verify your email to download detailed product documents.
  • Get Verification Code
