M24-RPLS-ATX02

Decenta ATX 02 isa standard ATX form factormotherboard, which isbuilton Intel? H 610 chipset. It performs well in industrialcontrol and automation applications that require high-performance computing and scalability,such as Industrialautomation, embedded systems, communication equipment, industrialservers,etc.

Main Features
  • Intel? LGA1700 Socket: Ready for Bartlett Lake  & 14th/13th/12th gen Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? processor

  • Intel? H610 Chipset

  • Support 2x DDR4 3200MT/s UDIMM Memory, Dual Channel up to 64GB

  • Rich display interfaces with VGA/HDMI?/DP

  • 1x M.2 E-Key 2230 Slot for Wi-Fi module, Support Wi-Fi 6E & Bluetooth 5.3

  • 1x M.2 M-Key 2242/2280 Slot for SSD

  • 1x PCIe 4.0 X16 Slot(X16 Signal), 2x PCIe 3.0 X4 Slots(X2 Signal), 1x PCIe 3.0 X4 Slot(X1 Signal), 3x PCI Slots

  • Support TPM 2.0,  Watchdog

M24-RPLS-ATX02

3

2

M24-RPLS-ATX02

3

2

  • Product Specifications

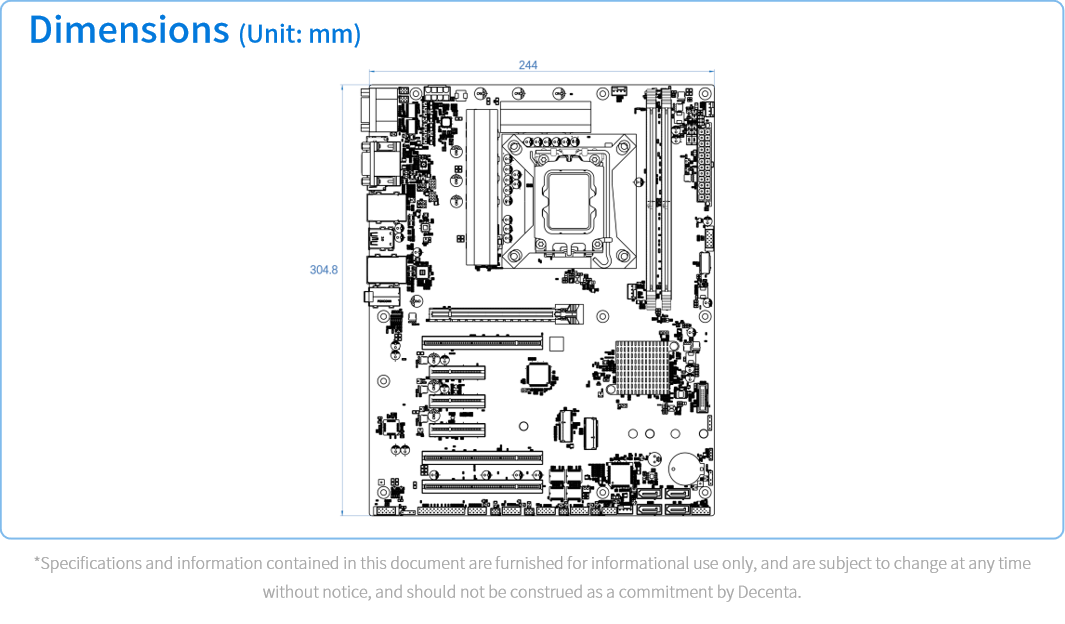

  • Product Dimension Drawing
